Solid Ceramic Wire Guide Nozzles
Emerging in recent years are Wire Guide Nozzles in Solid Ceramics, particularly those made of Solid Zirconia. Since pure Zirconia is unfitting for wear-resistant applications, two (2) options remain:
TZP Tetragonal Zirconia Polycrystal
ZTA Zirconia Toughened Alumina
TZP ( Tetragonal Zirconia Polycrystal) Wire Guide Nozzles

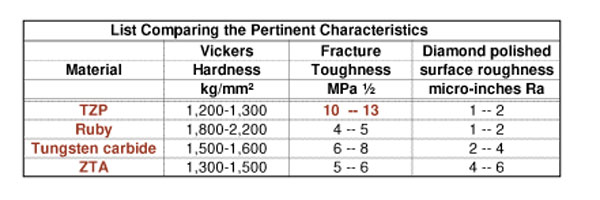

TZP is also known as Partially Stabilized Zirconia which is becoming one of the material of choice for critical wear components in view of its superior wear resistance and surface finish. It has been chosen for COSMOS Wire Guide Nozzles. The list of comparison below illustrates the reasons behind our selection. Please take note the relatively lower Hardness of TZP is more than compensated by its superb Fracture Toughness. Indeed, wear tests at COSMOS revealed that the wear resistance of TZP is slightly superior to that of synthetic ruby. Its diamond lapped surface roughness of 1 - 2 micro-inches Ra is only matched by that of Ruby. While the material ZTA exhibits a better hardness, its lower Fracture Toughness precludes it from COSMOS Wire Guide Nozzle family.
Photographic Evidences
Photos below reveal the surface finish of the Exit (left), Bore (center), and Entrance (right) of a COSMOS TZP Zirconia Wire Guide Nozzle of bore diameter 0.5 mm.
EXIT BORE ENTRANCE
What Dimensions We have to Offer?
At this writing, COSMOS offers TZP Wire Guide Nozzle in the following dimensions:
I. D. 0.3, 0.5, 0.8 mm O. D. 0.8 to 3.0 mm Length: 10 to 30 mm
